# Create a dashboard with AI

### Objective

In this tutorial, we will guide you through the process of creating a dashboard in Toucan AI. You will learn how to create a new dashboard, add charts, and apply filters to interact with the visualizations.

### Prerequisites

* A [connected database](https://toucan-toco.gitbook.io/toucan-ai/build/data-connections/how-to/add-a-database) (as seen in previous tutorials).
* Charts created either manually or [with AI ](https://toucan-toco.gitbook.io/toucan-ai/build/charts/how-to/create-a-chart-with-ai)(as shown in previous tutorials).

### Steps

#### 1. Access the Dashboard Creation Interface

* To begin creating a dashboard, return to the **Home Page** of Toucan AI.
* From here, you have two options to create a new dashboard:
  * In the **Library** tab on the main page, you will find an input box where you can type a prompt.
    * *For example, type **"Create a dashboard to track employee contracts and employee gender"** and press **Enter**. This will open a dashboard creation interface and automatically generate three charts based on your request.*
  * Alternatively, click on **Add Visualization** from the main page, then select **Add Dashboard** to begin creating a dashboard.

#### 2. Add Charts to Your Dashboard

Once you're in the dashboard creation interface, you can:

* **Generate new charts** by typing prompts in the conversational interface (as seen in the previous tutorial).
* Or, **add an existing chart** by clicking the **Add Existing Chart** button on the right side of the screen. Select a previously created chart (for example, the chart you created earlier).

#### 3. Add Additional Charts to the Dashboard

* After adding the first chart, you can add another chart.
  * *For example, you could type **"What is the average age of my employees?"** in the prompt box.*
* After sending the prompt, a second chart will be automatically generated and added to your dashboard.
* Your dashboard will now have two charts: one added from an existing chart and the second generated from the prompt.

<figure><img src="https://4270790459-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fl0BD9cL6TJjTGV95tGak%2Fuploads%2F6RkJmspopK3jocPpLj5v%2FToucanAI%20-%20AI%20Dashboard.png?alt=media&#x26;token=38d0e47b-e8ce-4133-81ac-64ce36ddbbca" alt=""><figcaption></figcaption></figure>

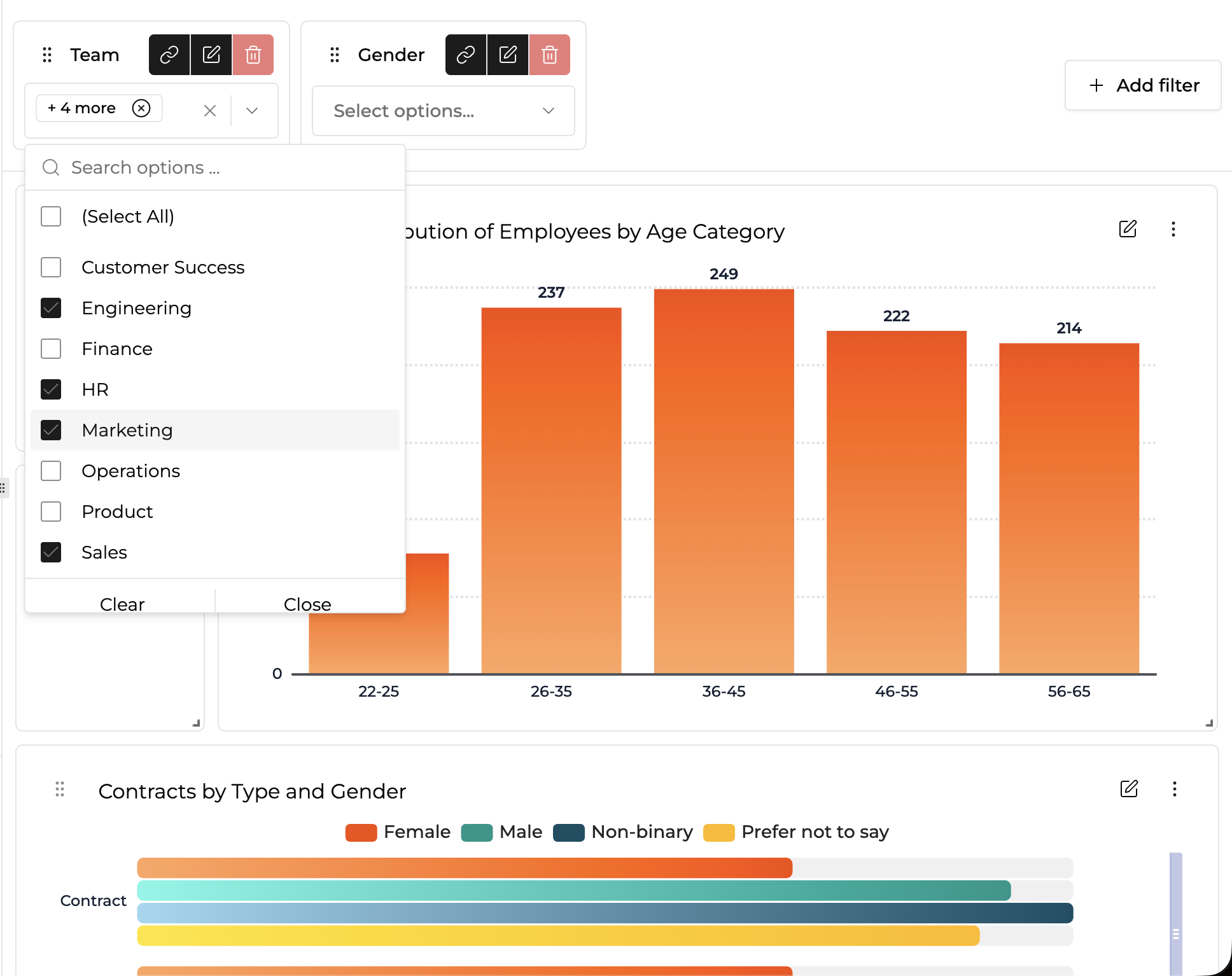

#### 4. Add Filters to the Dashboard

* To enhance your dashboard, you [can add a filter](https://toucan-toco.gitbook.io/toucan-ai/build/dashboards-and-layouts/how-to/add-filters-to-a-dashboard). Click on the **Add Filter** button at the top-right of the interface.
* Choose the filter type (for example, **Multi-select**) and give it a name, such as **Contract**. Save the filter.

#### 5. Link the Filter to the Charts

* After adding the filter, you can link it to the charts on the dashboard.
  * Click on the filter icon, and select the chart you want to apply the filter to.
  * A prompt will appear asking you to choose a **column to filter on**. For example, you can select the **Contract Type** column.
  * Repeat this step for the second chart.
  * Finally, click **Edit** on the filter and click **Save** to apply it.

<figure><img src="https://4270790459-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fl0BD9cL6TJjTGV95tGak%2Fuploads%2F2HgpdCvM58vXn4PosiQm%2FToucanAI%20-%20Dashboard%20Filters.png?alt=media&#x26;token=3afcf10e-8db3-46d1-819b-d4326d6c12c8" alt=""><figcaption></figcaption></figure>

#### 6. Save and Finalize the Dashboard

* Once you’ve added the charts and filters, save your dashboard.
* Your dashboard will now contain two charts, with a filter that allows interaction with both charts.

### Conclusion

Congratulations! You’ve successfully created your first dashboard with two charts in Toucan AI. One chart was added from the **Chart** menu, and the other was created directly in the **Dashboard** interface. You also added a filter that lets you interact with the charts in the same dashboard.

**Suggested Next Steps**: [embed a dashboard](https://toucan-toco.gitbook.io/toucan-ai/embed/embedding-methods/how-to/embed-a-dashboard)!
